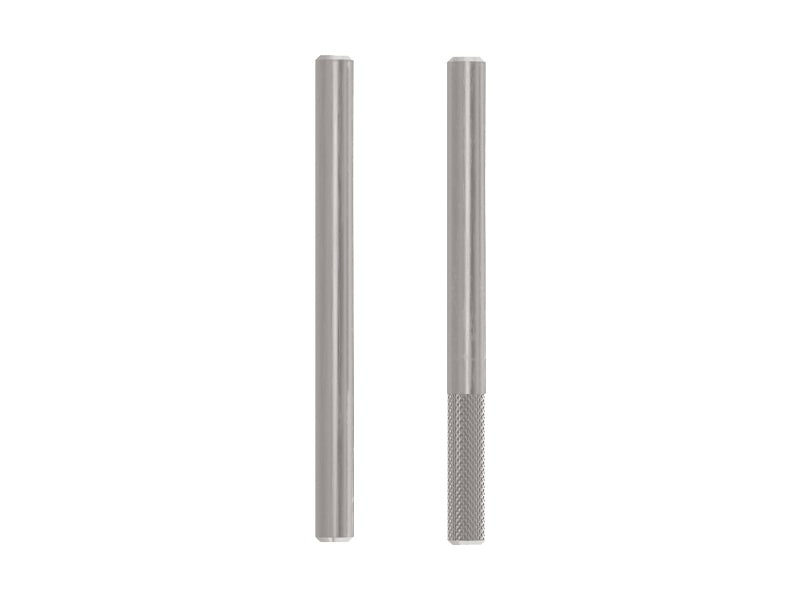

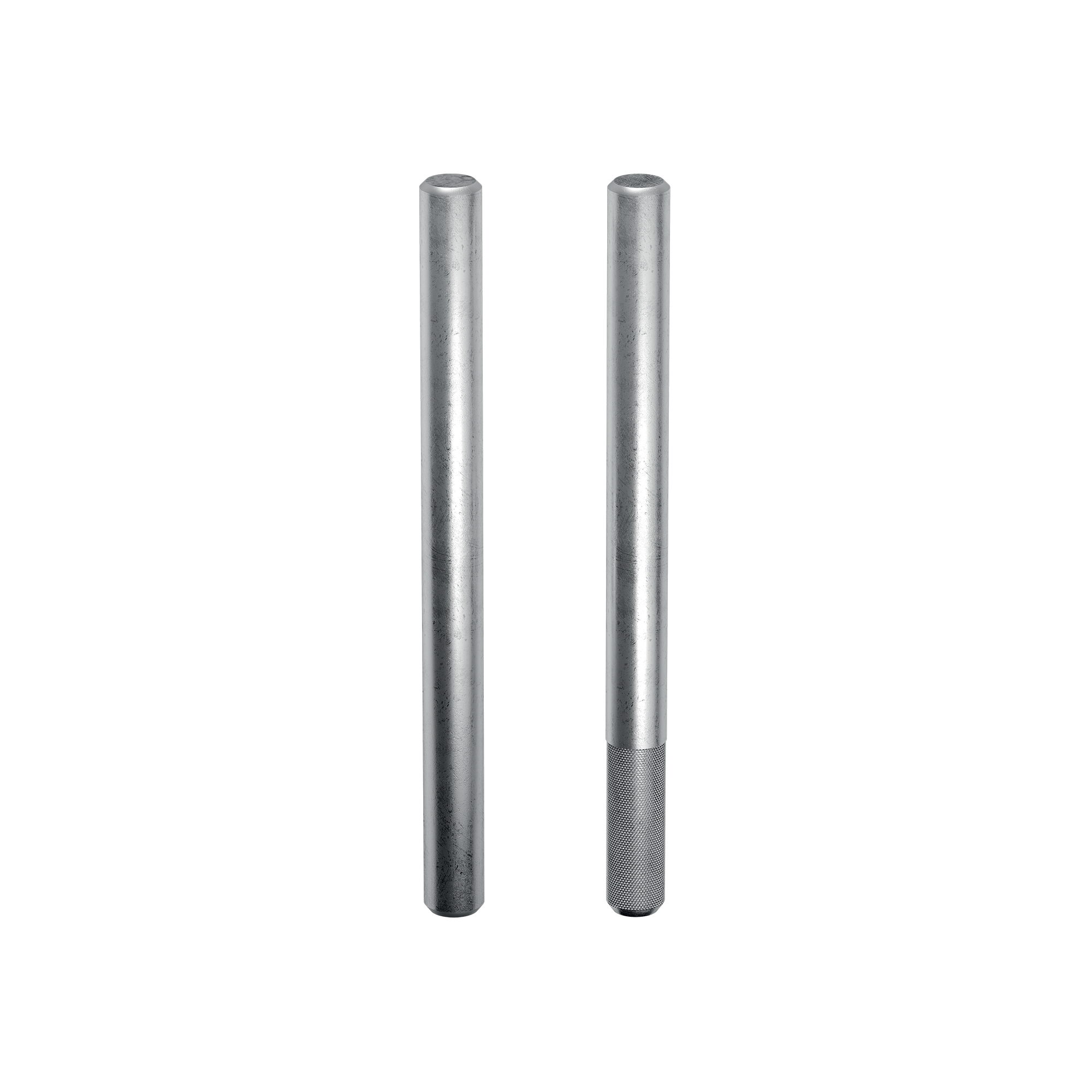

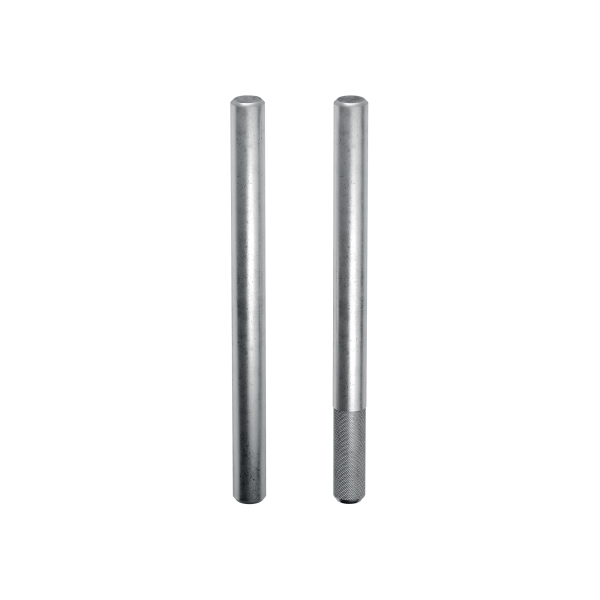

PASADOR LISO

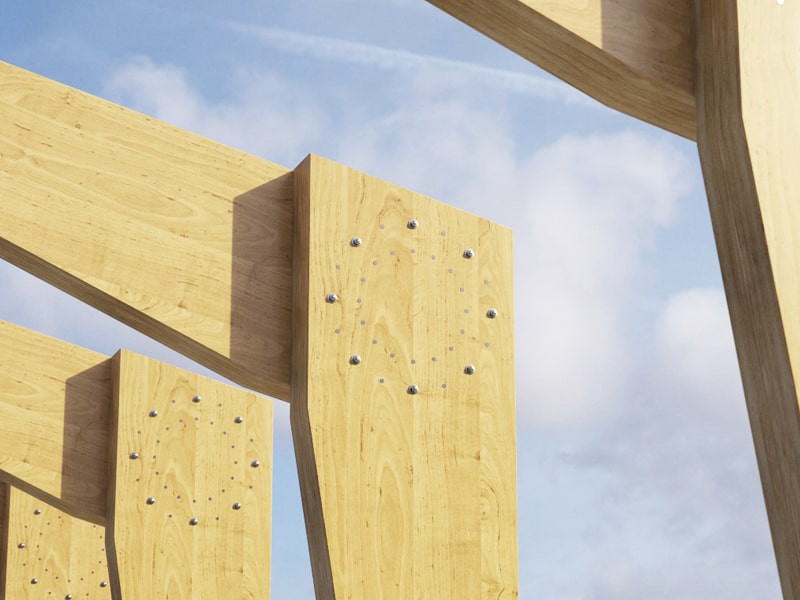

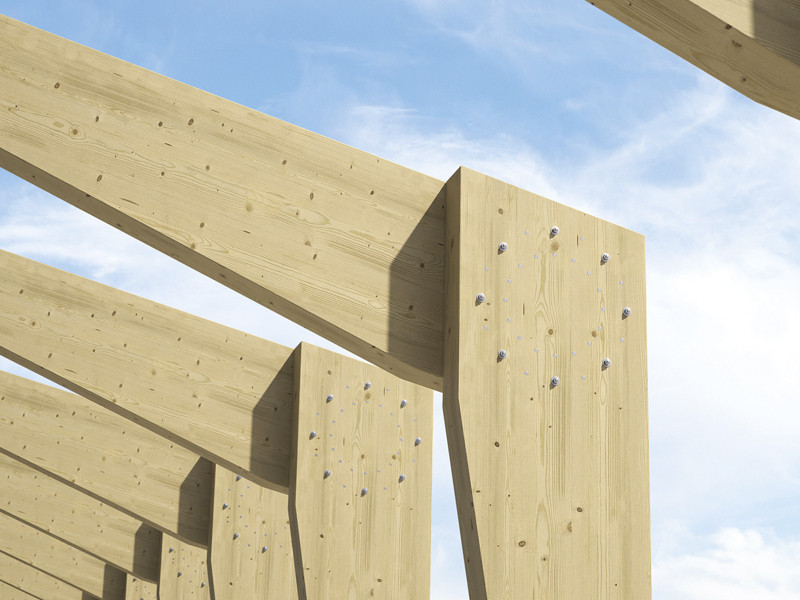

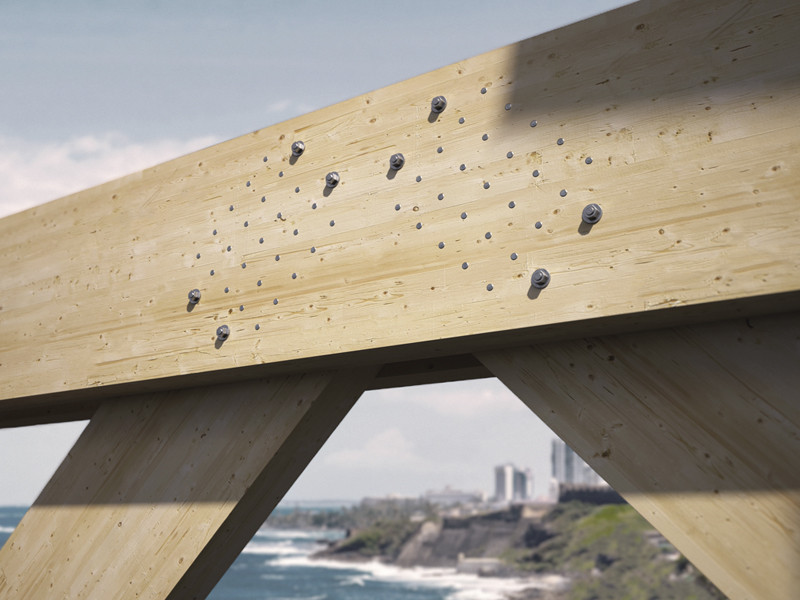

De acero S355 para asegurar mayor resistencia al corte para las medidas utilizadas en ámbito estructural (Ø16 o Ø20).

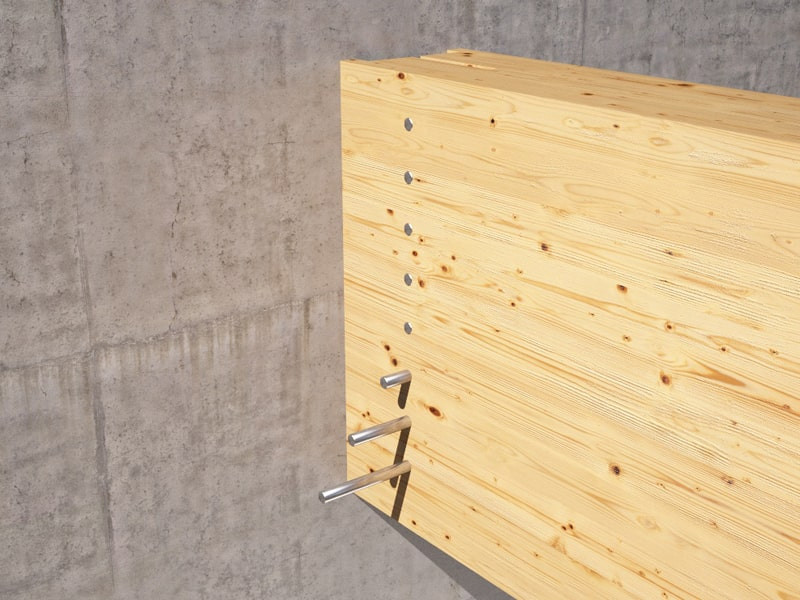

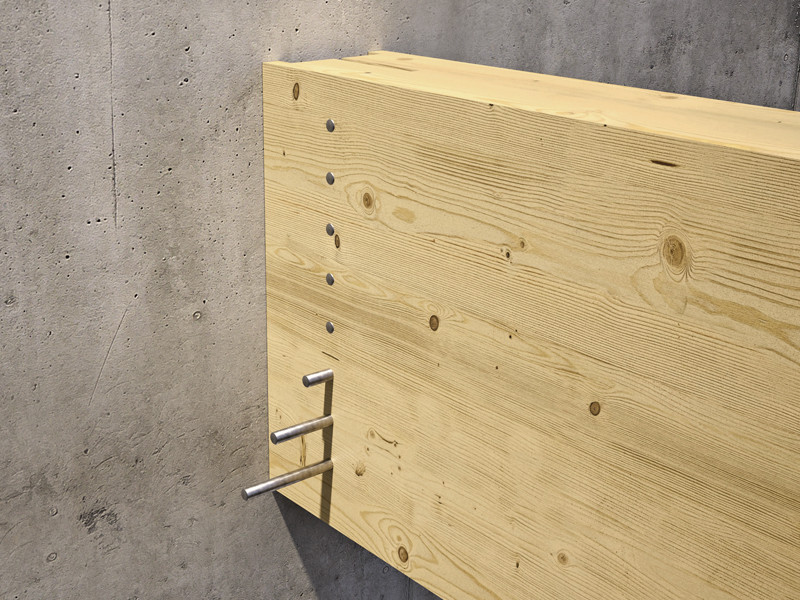

Extremidad cónica para facilitar la inserción en el agujero preparado en la madera. Disponible en la versión de 1,0 m.

Disponible bajo pedido en versión con adherencia mejorada con geometría antiextracción para usar en zona sísmica."

Contactar con el agente

Documentación
Códigos y dimensiones
Productos relacionados

Documentación

Ficha técnica
Elegir idioma

STA

CÓDIGO	material	d₁ [mm]	L [mm]	d₁ [in]	L [in]	unid.
STA860B	S235	8	60	0.32	2 3/8''	100
STA880B	S235	8	80	0.32	3 1/8''	100
STA8100B	S235	8	100	0.32	4''	100
STA8120B	S235	8	120	0.32	4 3/4''	100
STA8140B	S235	8	140	0.32	5 1/2''	100
STA1260B	S235	12	60	0.48	2 3/8''	50
STA1270B	S235	12	70	0.48	2 3/4''	50
STA1280B	S235	12	80	0.48	3 1/8''	50
STA1290B	S235	12	90	0.48	3 1/2''	50
STA12100B	S235	12	100	0.48	4''	50
STA12110B	S235	12	110	0.48	4 3/8''	50
STA12120B	S235	12	120	0.48	4 3/4''	50
STA12130B	S235	12	130	0.48	5 1/8''	50
STA12140B	S235	12	140	0.48	5 1/2''	25
STA12150B	S235	12	150	0.48	6''	25
STA12160B	S235	12	160	0.48	6 1/4''	25
STA12170B	S235	12	170	0.48	6 3/4''	25
STA12180B	S235	12	180	0.48	7 1/8''	25
STA12200B	S235	12	200	0.48	8''	25
STA12220B	S235	12	220	0.48	8 5/8''	25
STA12240B	S235	12	240	0.48	9 1/2''	25
STA12260B	S235	12	260	0.48	10 1/4''	25
STA12280B	S235	12	280	0.48	11''	25
STA12320B	S235	12	320	0.48	12 5/8''	25
STA12340B	S235	12	340	0.48	13 3/8''	25
STA121000B	S235	12	1000	0.48	39 3/8''	1
STA1680B	S355	16	80	0.63	3 1/8''	25
STA16100B	S355	16	100	0.63	4''	25
STA16110B	S355	16	110	0.63	4 3/8''	25
STA16120B	S355	16	120	0.63	4 3/4''	25
STA16130B	S355	16	130	0.63	5 1/8''	25
STA16140B	S355	16	140	0.63	5 1/2''	25
STA16150B	S355	16	150	0.63	6''	25
STA16160B	S355	16	160	0.63	6 1/4''	15
STA16170B	S355	16	170	0.63	6 3/4''	15
STA16180B	S355	16	180	0.63	7 1/8''	15
STA16190B	S355	16	190	0.63	7 1/2''	15
STA16200B	S355	16	200	0.63	8''	15
STA16220B	S355	16	220	0.63	8 5/8''	15
STA16240B	S355	16	240	0.63	9 1/2''	15
STA16260B	S355	16	260	0.63	10 1/4''	10
STA16280B	S355	16	280	0.63	11''	10
STA16300B	S355	16	300	0.63	11 3/4''	10
STA16320B	S355	16	320	0.63	12 5/8''	10
STA16340B	S355	16	340	0.63	13 3/8''	10
STA16360B	S355	16	360	0.63	14 1/4''	10
STA16380B	S355	16	380	0.63	15''	10
STA16400B	S355	16	400	0.63	15 3/4''	10
STA16500B	S355	16	500	0.63	19 3/4''	10
STA161000B	S355	16	1000	0.63	39 3/8''	1
STA20120B	S355	20	120	0.79	4 3/4''	10
STA20140B	S355	20	140	0.79	5 1/2''	10
STA20160B	S355	20	160	0.79	6 1/4''	10
STA20180B	S355	20	180	0.79	7 1/8''	10
STA20190B	S355	20	190	0.79	7 1/2''	10
STA20200B	S355	20	200	0.79	8''	10
STA20220B	S355	20	220	0.79	8 5/8''	10
STA20240B	S355	20	240	0.79	9 1/2''	10
STA20260B	S355	20	260	0.79	10 1/4''	5
STA20300B	S355	20	300	0.79	11 3/4''	5
STA20320B	S355	20	320	0.79	12 5/8''	5
STA20360B	S355	20	360	0.79	14 1/4''	5
STA20400B	S355	20	400	0.79	15 3/4''	5
STA201000B	S355	20	1000	0.79	39 3/8''	1

STA A2 | AISI304

CÓDIGO	material	d₁ [mm]	L [mm]	d₁ [in]	L [in]	unid.
STA12100A2	A2 \| AISI304	12	100	0.48	4''	100
STA12120A2	A2 \| AISI304	12	120	0.48	4 3/4''	1
STA12140A2	A2 \| AISI304	12	140	0.48	5 1/2''	1
STA12160A2	A2 \| AISI304	12	160	0.48	6 1/4''	1
STA12180A2	A2 \| AISI304	12	180	0.48	7 1/8''	25
STA12220A2	A2 \| AISI304	12	220	0.48	8 5/8''	25
STA12240A2	A2 \| AISI304	12	240	0.48	9 1/2''	25
STA12260A2	A2 \| AISI304	12	260	0.48	10 1/4''	25
STA16120A2	A2 \| AISI304	16	120	0.63	4 3/4''	10
STA16140A2	A2 \| AISI304	16	140	0.63	5 1/2''	1
STA16150A2	A2 \| AISI304	16	150	0.63	6''	10
STA16160A2	A2 \| AISI304	16	160	0.63	6 1/4''	10
STA16180A2	A2 \| AISI304	16	180	0.63	7 1/8''	10
STA16200A2	A2 \| AISI304	16	200	0.63	8''	10
STA16220A2	A2 \| AISI304	16	220	0.63	8 5/8''	10
STA16240A2	A2 \| AISI304	16	240	0.63	9 1/2''	10
STA16260A2	A2 \| AISI304	16	260	0.63	10 1/4''	10
STA16280A2	A2 \| AISI304	16	280	0.63	11''	10
STA16300A2	A2 \| AISI304	16	300	0.63	11 3/4''	10
STA20160A2	A2 \| AISI304	20	160	0.79	6 1/4''	10
STA20180A2	A2 \| AISI304	20	180	0.79	7 1/8''	10
STA20200A2	A2 \| AISI304	20	200	0.79	8''	10
STA20220A2	A2 \| AISI304	20	220	0.79	8 5/8''	10
STA20240A2	A2 \| AISI304	20	240	0.79	9 1/2''	10
STA20260A2	A2 \| AISI304	20	260	0.79	10 1/4''	5
STA20280A2	A2 \| AISI304	20	280	0.79	11''	5
STA20300A2	A2 \| AISI304	20	300	0.79	11 3/4''	5
STA20320A2	A2 \| AISI304	20	320	0.79	12 5/8''	5
STA20340A2	A2 \| AISI304	20	340	0.79	13 3/8''	5
STA20360A2	A2 \| AISI304	20	360	0.79	14 1/4''	5
STA20380A2	A2 \| AISI304	20	380	0.79	15''	5
