LÍNEA DE VIDA VERTICAL EN PARED
VERTIGRIP ON WALL
New

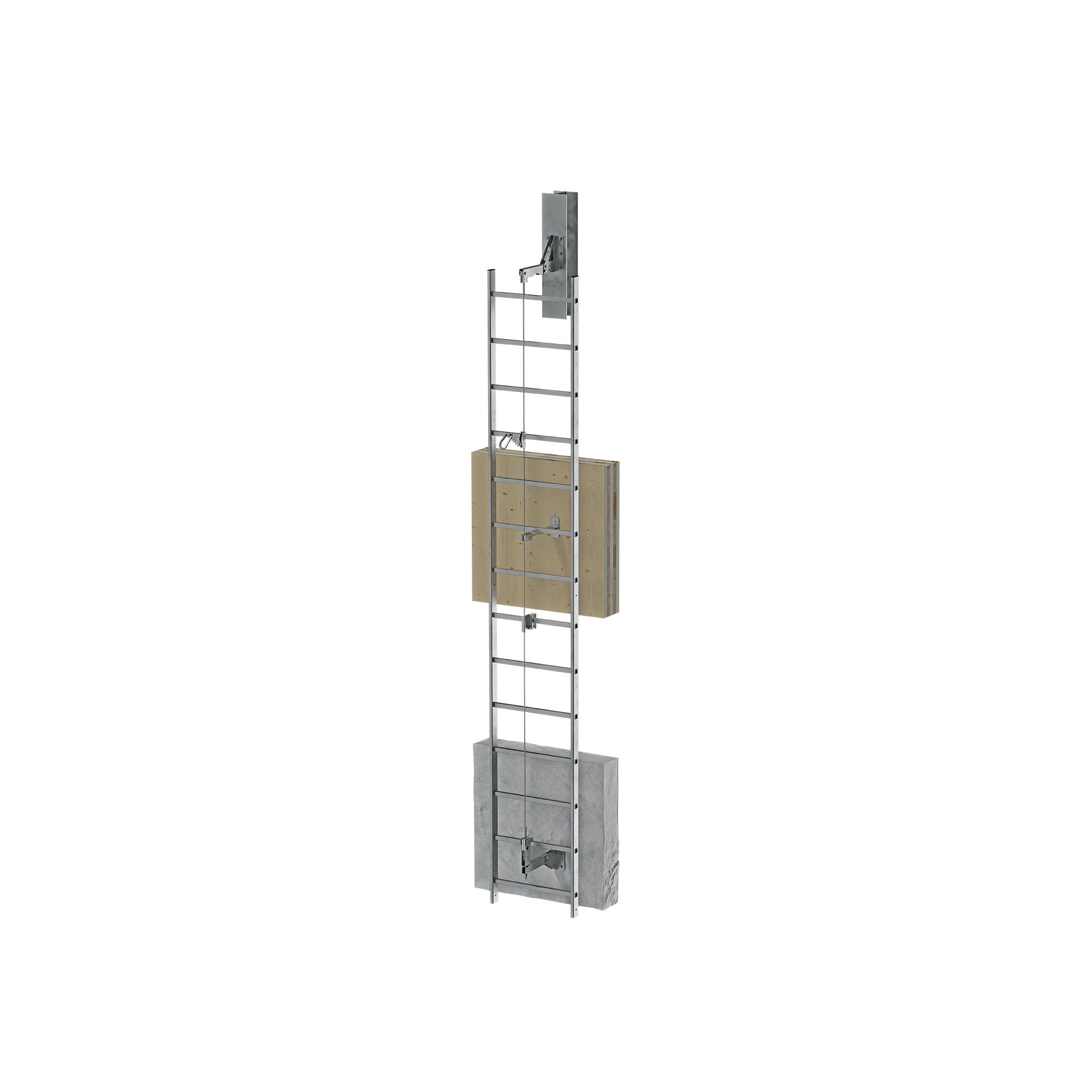

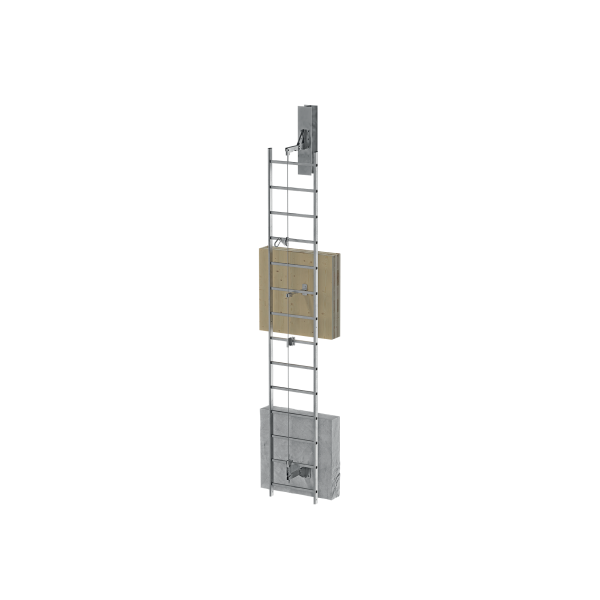

VERTIGRIP ON WALL es la línea de vida vertical de pared que se puede utilizar como una válida alternativa cuando no es posible montar la línea de vida directamente en la escalera. Se puede instalar fácilmente sobre capas de fondo de madera, acero y hormigón.
Línea de vida de pared VERTIGRIP ON WALL: la alternativa a la línea de vida en escalera.
La línea de vida vertical de pared VERTIGRIP ON WALL permite regular la distancia de la línea de vida a la pared. Se puede instalar en paredes inclinadas con ángulos de hasta 15° con respecto a la vertical.
Documentación
Ficha técnica
|
|
|---|---|
Certificados
|
|
Declaración de conformidad
|
|
Normas de seguridad, instrucciones de uso e instalación VERTIGRIP
|
|
Normas de seguridad, instrucciones de uso e instalación VERTSLIDE
|
|
Declaración de colocación e inspección
|
Instrucciones de colocación
| Manual de instalación |
|---|
COMPONENTI PRINCIPALI PER LINEA VITA VERTICALE
| CÓDIGO | descripción | unid. |
|---|---|---|
| VERTSPEAR | set for vertical lifeline with clamps and Tensioner | 1 |
| CABLE | Ø8 7 x 7 | 1 |
| VERTSLIDE | removable guided type fall arrester with energy absorber for vertical lifeline | 1 |
| VERTSPEARA4 | set for A4 VLL | 1 |
| VERTOPW | upper anchor system for vertical lifeline on structure | 1 |
| VERTOPWA4 | upper anchor system for vertical lifeline on A4 structure | 1 |
| VERTBASEW | lower anchor system for vertical lifeline on structure | 1 |
| VERTBASEWA4 | lower anchor system for vertical lifeline on A4 structure | 1 |
| VERTINTW | intermediate bracket for vertical lifeline on structure | 1 |
| VERTINTWA4 | intermediate anchor system for vertical lifeline on A4 structure | 1 |
SOPORTES PARA LÍNEA DE VIDA VERTICAL EN ESCALERA
| CÓDIGO | descripción | material | peso netto
[Kg]
|
unid. |
|---|---|---|---|---|
| VERTOPW | upper anchor system for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 | 2 | 1 |
| VERTOPWA4 | upper anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 | 2 | 1 |
| VERTBASEW | lower anchor system for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 | 1 | 1 |
| VERTBASEWA4 | lower anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 | 1 | 1 |
| VERTINTW | intermediate bracket for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 – ABS | 1 | 1 |
| VERTINTWA4 | intermediate anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 – ABS | 1 | 1 |
ACCESORIOS PARA LÍNEA DE VIDA VERTICAL
| CÓDIGO | descripción | material | peso netto
[Kg]
|
unid. |
|---|---|---|---|---|
| VERTHAND | set of handles for VERTOP17 | PA6 - stainless steel 1.4301 / AISI 304 | 0.05 | 1 |
| VERTSUP1 | additional reinforcement set for ladder | AISI 304 stainless steel grade 1.4301 | 0.5 | 1 |
TARGAVERTxy
| CÓDIGO | descripción | unid. |
|---|---|---|
| TARGAVERTIT | Label plate for VERTIGRIP systems IT | 1 |
| TARGAVERTDE | Label plate for VERTIGRIP systems DE | 1 |
| TARGAVERTEN | Label plate for VERTIGRIP systems EN | 1 |
| TARGAVERTES | Label plate for VERTIGRIP systems ES | 1 |
| TARGAVERTFR | Label plate for VERTIGRIP systems FR | 1 |
| TARGAVERTPT | Label plate for VERTIGRIP systems PT | 1 |
| TARGAVERTRU | Label plate for VERTIGRIP systems RU | 1 |
| TARGAVERTCS | Label plate for VERTIGRIP systems CS | 1 |
| TARGAVERTDA | Label plate for VERTIGRIP systems DA | 1 |
| TARGAVERTEL | Label plate for VERTIGRIP systems EL | 1 |
| TARGAVERTET | Label plate for VERTIGRIP systems ET | 1 |
| TARGAVERTFI | Label plate for VERTIGRIP systems FI | 1 |
| TARGAVERTHR | Label plate for VERTIGRIP systems HR | 1 |
| TARGAVERTHU | Label plate for VERTIGRIP systems HU | 1 |
| TARGAVERTIS | Label plate for VERTIGRIP systems IS | 1 |
| TARGAVERTJA | Label plate for VERTIGRIP systems JA | 1 |
| TARGAVERTLT | Label plate for VERTIGRIP systems LT | 1 |
| TARGAVERTLV | Label plate for VERTIGRIP systems LV | 1 |
| TARGAVERTNL | Label plate for VERTIGRIP systems NL | 1 |
| TARGAVERTNO | Label plate for VERTIGRIP systems NO | 1 |
| TARGAVERTPL | Label plate for VERTIGRIP systems PL | 1 |
| TARGAVERTRO | Label plate for VERTIGRIP systems RO | 1 |
| TARGAVERTSK | Label plate for VERTIGRIP systems SK | 1 |
| TARGAVERTSL | Label plate for VERTIGRIP systems SL | 1 |
| TARGAVERTSV | Label plate for VERTIGRIP systems SV | 1 |
| TARGAVERTTR | Label plate for VERTIGRIP systems TR | 1 |
| TARGAVERTZH | Label plate for VERTIGRIP systems ZH | 1 |
| TARGAVERTAR | Label plate for VERTIGRIP systems AR | 1 |
Compuesto de
