The 5,000 lb misconception and what OSHA actually requires

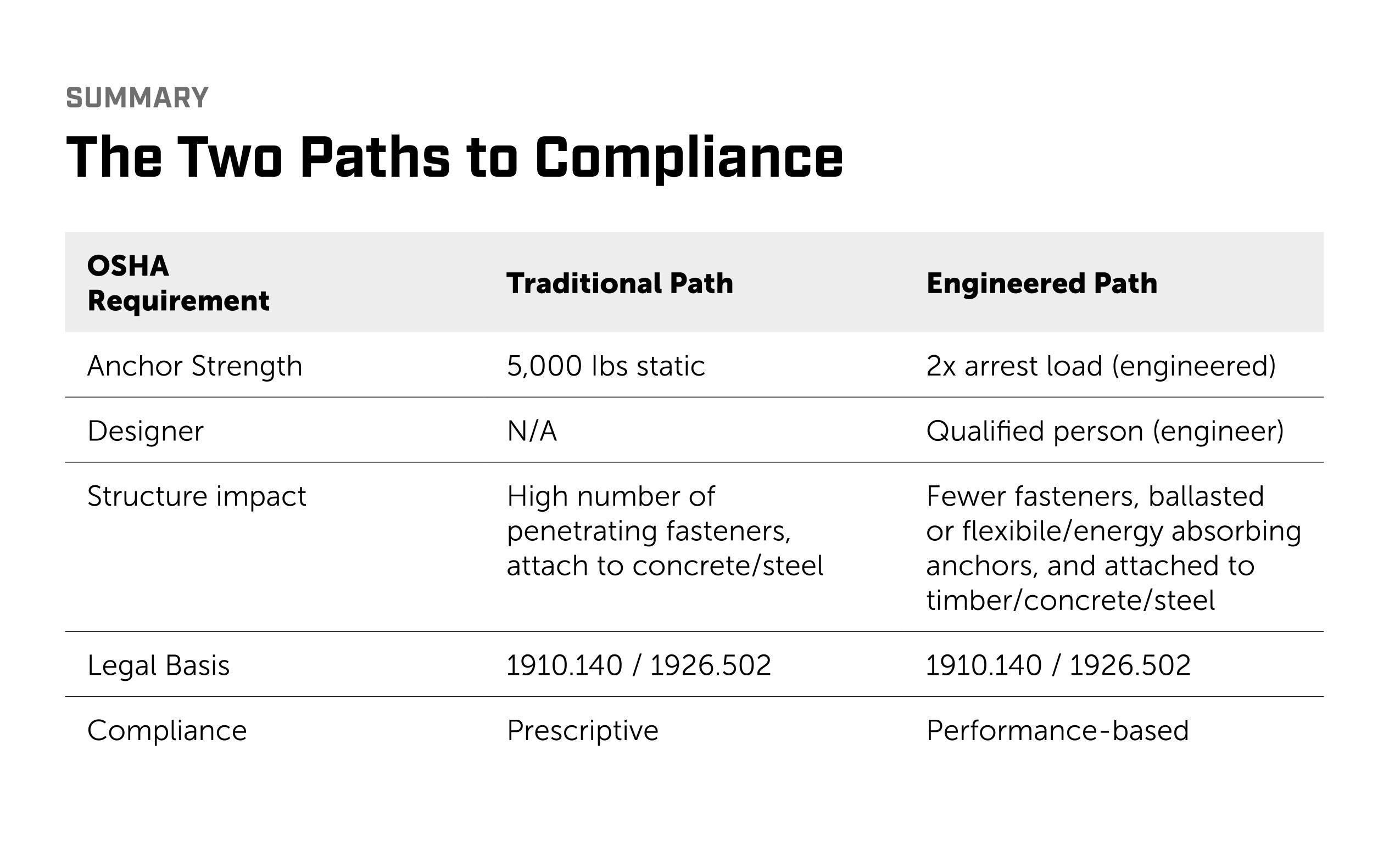

A widespread belief in fall protection design is that every anchorage must withstand 5,000 lb to comply with OSHA. While this value appears in both 29 CFR 1910.140 and 29 CFR 1926.502, it is not an absolute requirement. OSHA clearly defines two alternative compliance paths for anchorages used in personal fall arrest systems: either a static capacity of 5,000 lb or an anchorage designed, installed, and used as part of a complete engineered system, under the supervision of a qualified person, maintaining a minimum safety factor of 2.

This second, performance-based path is often misunderstood, yet it is explicitly allowed by OSHA. It recognizes that actual fall arrest forces are significantly lower than 5,000 lb, as OSHA itself limits the maximum arresting force on a worker to 1,800 lb. In real conditions, properly designed systems typically experience peak forces between 900 and 1,800 lb, depending on fall distance, deceleration, and energy absorption. Designing anchorages to resist twice the expected arrest force, rather than an arbitrary static threshold, results in safer, more efficient, and structurally compatible solutions—especially for modern roofs.

Engineered systems, qualified design, and modern roof compatibility

OSHA standards require engineered systems to be designed under the supervision of a qualified person, defined as someone with proven education, certification, or experience capable of resolving technical problems related to the project. In practice, this role is typically fulfilled by a licensed engineer or fall protection specialist, who calculates loads, selects components, and verifies that the entire system maintains the required safety margins.

This approach is critical for non-penetrating or energy-absorbing systems, ballasted anchors, and installations on lightweight or sensitive roof assemblies, such as timber structures, insulated decks, or vegetated roofs. Applying a rigid 5,000 lb static requirement in these contexts can introduce unnecessary risks: excessive structural loads, waterproofing conflicts, higher installation costs, and reduced architectural compatibility.

OSHA’s flexibility is also supported by building authorities. IBC Section 104.11 explicitly allows alternative materials and systems when they meet the intent of the code and provide equivalent safety and performance. As a result, many jurisdictions accept fall protection systems supported by sealed engineering reports or third-party technical evaluations.

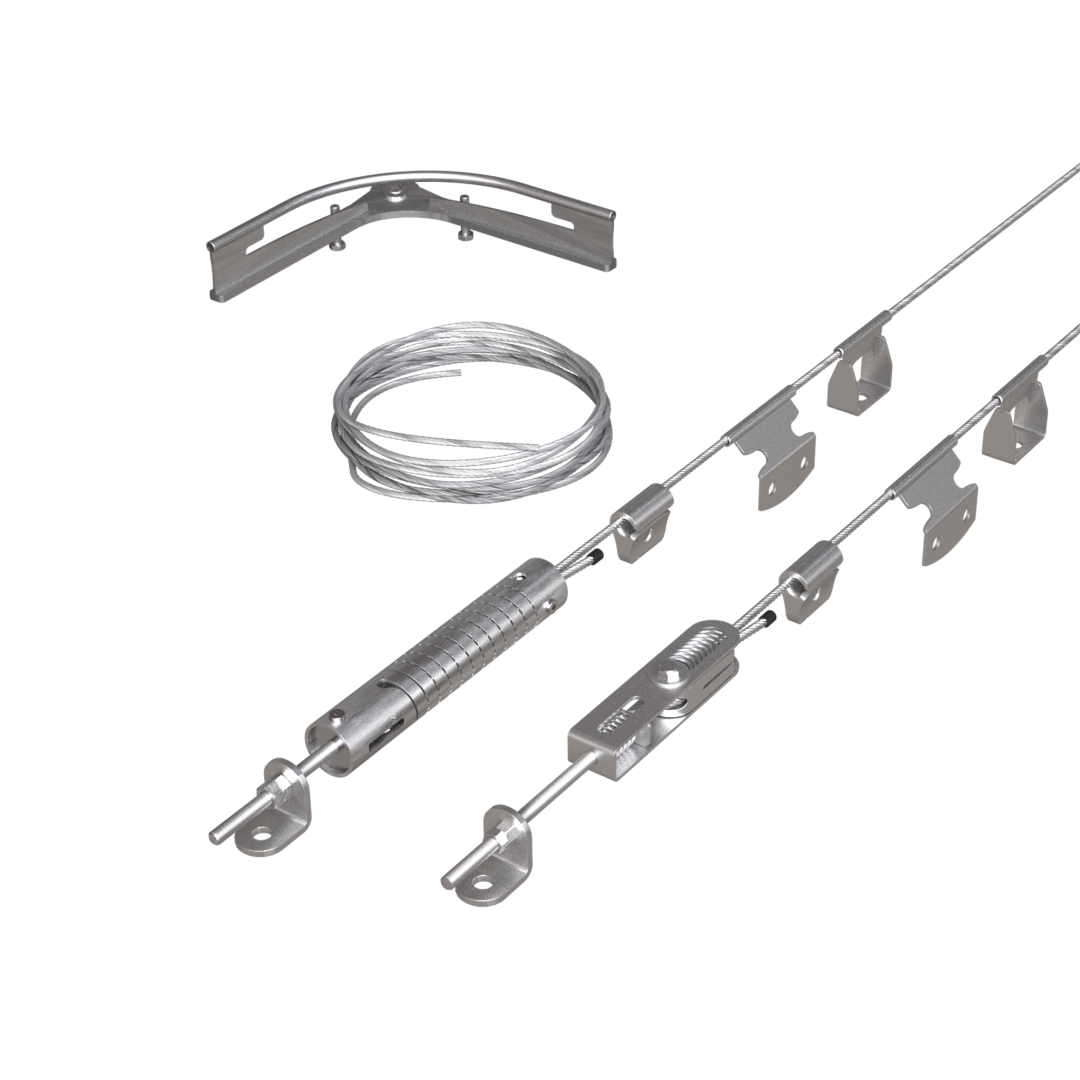

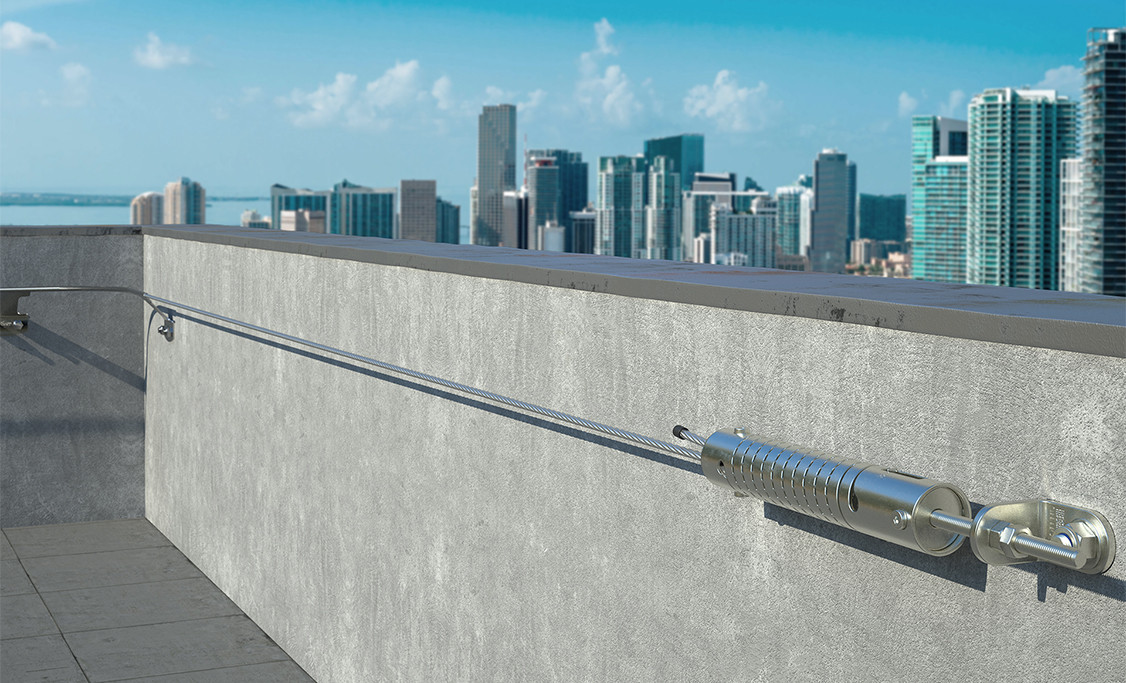

In practice, this enables the use of engineered lifeline systems designed for real-world conditions, such as PATROL, where standards recognize that well-designed, engineered systems—especially those adapted to modern roof types—can deliver full OSHA compliance without chasing unnecessary static loads. The result is smarter safety: fewer penetrations, controlled forces, faster installation, and systems aligned with contemporary building design.
