TORNILLO DE CABEZA PEQUEÑA
SHS AISI410

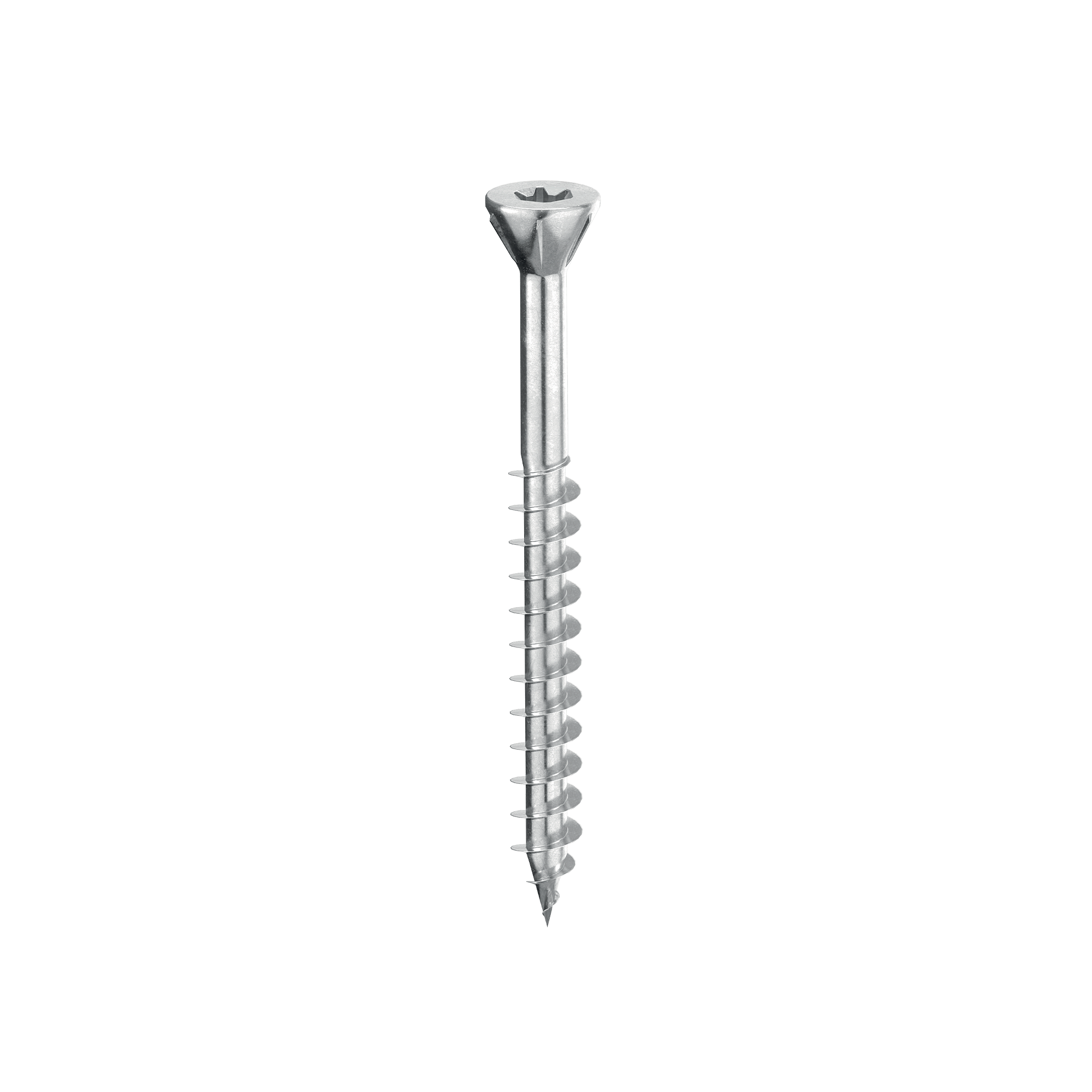

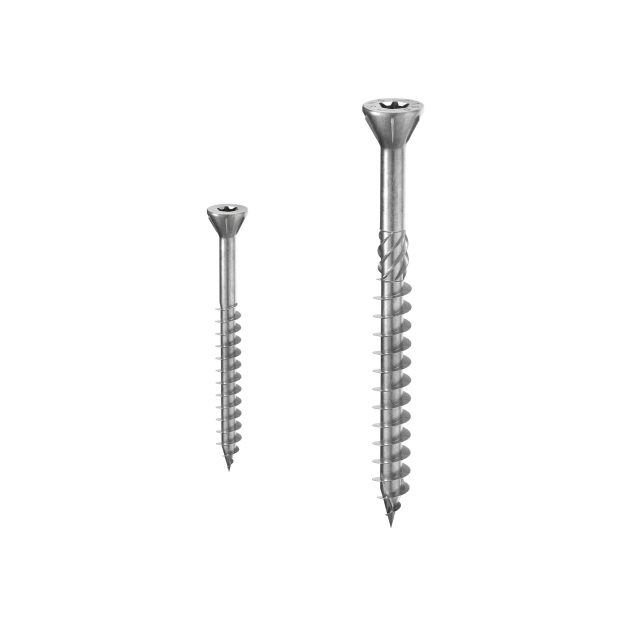

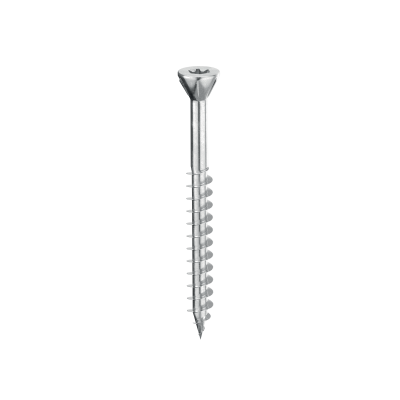

SHS AISI410 es de los tornillos para madera de cabeza pequeña pensado para el uso en elementos con espesores reducidos.
Gracias a la propiedad del acero inoxidable martensítico AISI410, resulta ideal para aplicaciones en exteriores.

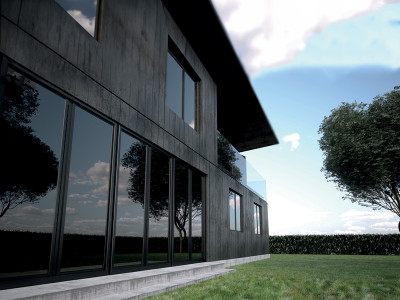

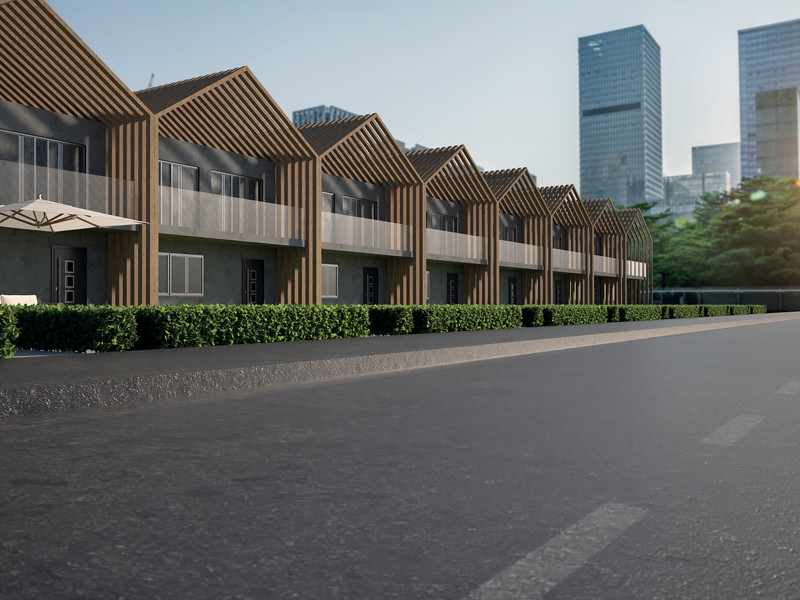

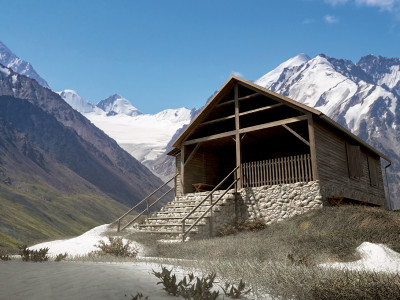

SHS AISI410: Entre los tornillos para madera, la fijación perfecta para pequeñas estructuras externas.

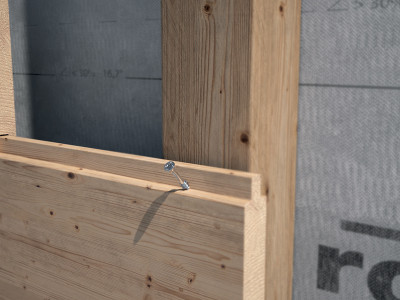

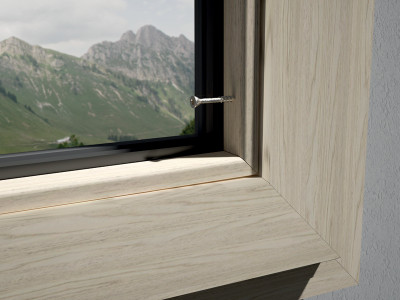

La cabeza pequeña y la rosca de prestaciones elevadas garantizan una perfecta colocación del tornillo en madera con espesores reducidos.
La excelente relación entre resistencia mecánica y resistencia a la corrosión hacen que sea la fijación perfecta entre los tornillos para madera de aplicación en contextos agresivos como son los ambientes externos.
Documentación
Ficha técnica | |
---|---|
Guía Sobre Distancias Mínimas | |
ICC-ES Listing report CANADA | |
Certification ETA | |
Declaración de prestaciones (DOP) | Descargar |
CAD Files |
SHS XS AISI410 - Ø3.5
CÓDIGO | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | unid. |
---|---|---|---|---|---|---|---|---|---|
SHS3540AS | - | 3.5 | 40 | 26 | 0.14 | 1 9/16'' | 1 1/32'' | TX10 | 500 |
SHS3550AS | - | 3.5 | 50 | 34 | 0.14 | 1 15/16'' | 1 5/16'' | TX10 | 500 |
SHS3560AS | - | 3.5 | 60 | 40 | 0.14 | 2 3/8'' | 1 9/16'' | TX10 | 500 |
SHS XS AISI410 - Ø4,5 - Ø5
CÓDIGO | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | unid. |
---|---|---|---|---|---|---|---|---|---|
SHS4550AS | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX20 | 200 |
SHS4560AS | - | 4.5 | 60 | 35 | 0.18 | 2 3/8'' | 1 3/8'' | TX20 | 200 |
SHS4570AS | - | 4.5 | 70 | 40 | 0.18 | 2 3/4'' | 1 9/16'' | TX20 | 200 |
SHS550AS | - | 5 | 50 | 24 | 0.2 | 1 15/16'' | 15/16'' | TX25 | 200 |
SHS560AS | - | 5 | 60 | 30 | 0.2 | 2 3/8'' | 1 3/16'' | TX25 | 200 |
SHS570AS | - | 5 | 70 | 35 | 0.2 | 2 3/4'' | 1 3/8'' | TX25 | 100 |
SHS580AS | - | 5 | 80 | 40 | 0.2 | 3 1/8'' | 1 9/16'' | TX25 | 100 |
SHS5100AS | - | 5 | 100 | 50 | 0.2 | 4'' | 1 15/16'' | TX25 | 100 |

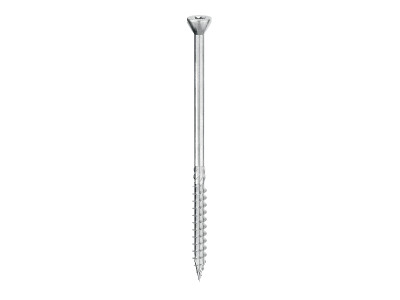

SHS AISI410 - Ø6 - Ø8
CÓDIGO | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | unid. |
---|---|---|---|---|---|---|---|---|---|
SHS680AS | - | 6 | 80 | 40 | 0.24 | 3 1/8'' | 1 9/16'' | TX30 | 100 |
SHS6100AS | - | 6 | 100 | 50 | 0.24 | 4'' | 1 15/16'' | TX30 | 100 |
SHS6120AS | - | 6 | 120 | 60 | 0.24 | 4 3/4'' | 2 3/8'' | TX30 | 100 |
SHS6140AS | - | 6 | 140 | 75 | 0.24 | 5 1/2'' | 2 15/16'' | TX30 | 100 |
SHS6160AS | - | 6 | 160 | 75 | 0.24 | 6 1/4'' | 2 15/16'' | TX30 | 100 |
SHS6180AS | - | 6 | 180 | 75 | 0.24 | 7 1/8'' | 2 15/16'' | TX30 | 100 |
SHS6200AS | - | 6 | 200 | 75 | 0.24 | 8'' | 2 15/16'' | TX30 | 100 |
SHS8120AS | - | 8 | 120 | 60 | 0.32 | 4 3/4'' | 2 3/8'' | TX40 | 100 |
SHS8140AS | - | 8 | 140 | 60 | 0.32 | 5 1/2'' | 2 3/8'' | TX40 | 100 |
SHS8160AS | - | 8 | 160 | 80 | 0.32 | 6 1/4'' | 3 1/8'' | TX40 | 100 |
SHS8180AS | - | 8 | 180 | 80 | 0.32 | 7 1/8'' | 3 1/8'' | TX40 | 100 |
SHS8200AS | - | 8 | 200 | 80 | 0.32 | 8'' | 3 1/8'' | TX40 | 100 |
SHS8220AS | - | 8 | 220 | 80 | 0.32 | 8 5/8'' | 3 1/8'' | TX40 | 100 |
SHS8240AS | - | 8 | 240 | 80 | 0.32 | 9 1/2'' | 3 1/8'' | TX40 | 100 |
SHS8260AS | - | 8 | 260 | 80 | 0.32 | 10 1/4'' | 3 1/8'' | TX40 | 100 |
SHS8280AS | - | 8 | 280 | 80 | 0.32 | 11'' | 3 1/8'' | TX40 | 100 |

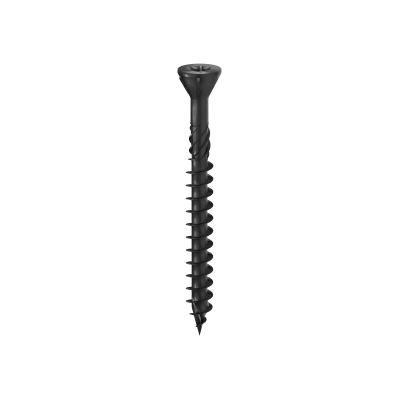

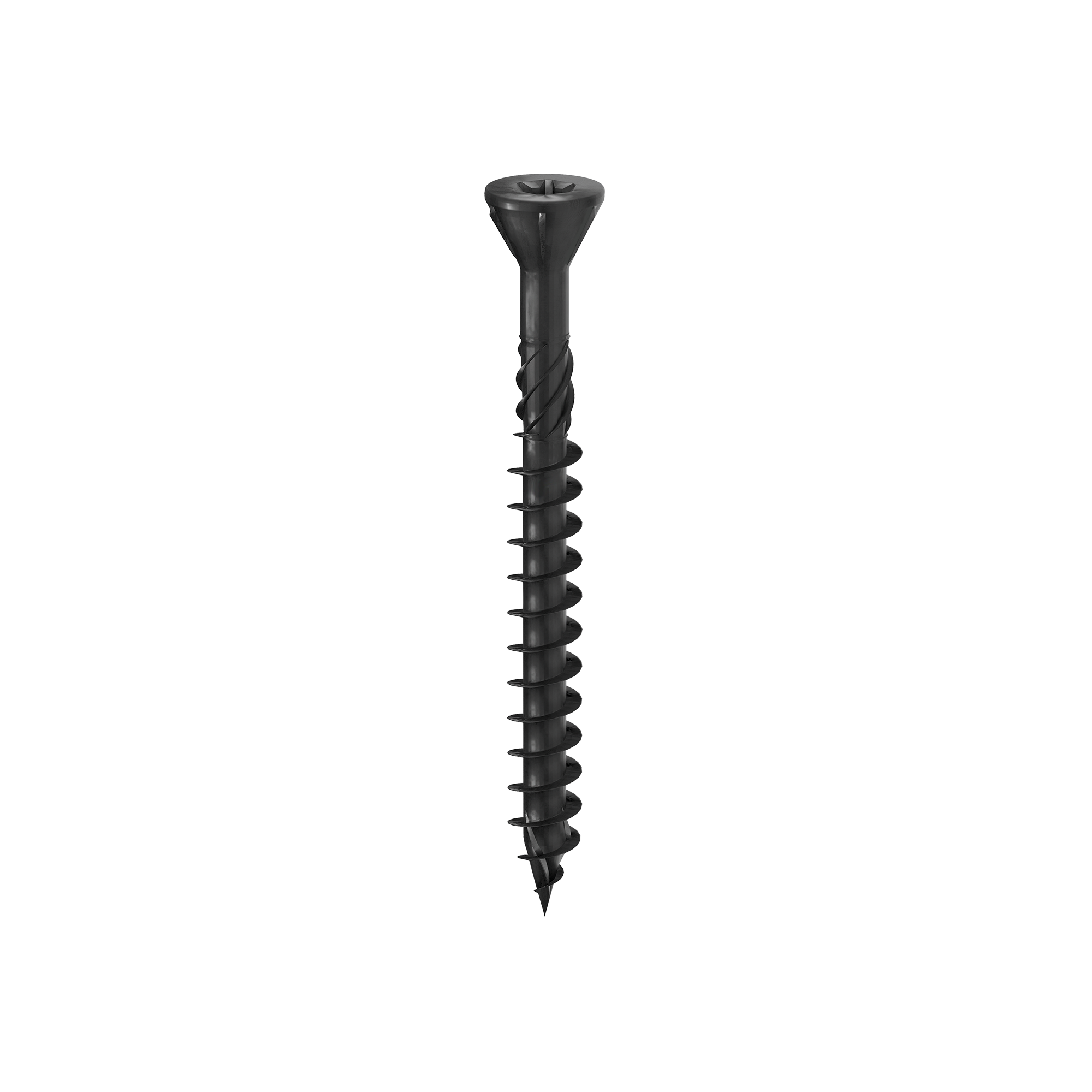

SHS N AISI410
CÓDIGO | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | unid. |
---|---|---|---|---|---|---|---|---|---|
SHS4550ASN | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX20 | 100 |
SHS4560ASN | - | 4.5 | 60 | 35 | 0.18 | 2 3/8'' | 1 3/8'' | TX20 | 100 |
SHS550ASN | - | 5 | 50 | 24 | 0.2 | 1 15/16'' | 15/16'' | TX25 | 100 |
SHS560ASN | - | 5 | 60 | 30 | 0.2 | 2 3/8'' | 1 3/16'' | TX25 | 200 |
