New
STEP UP

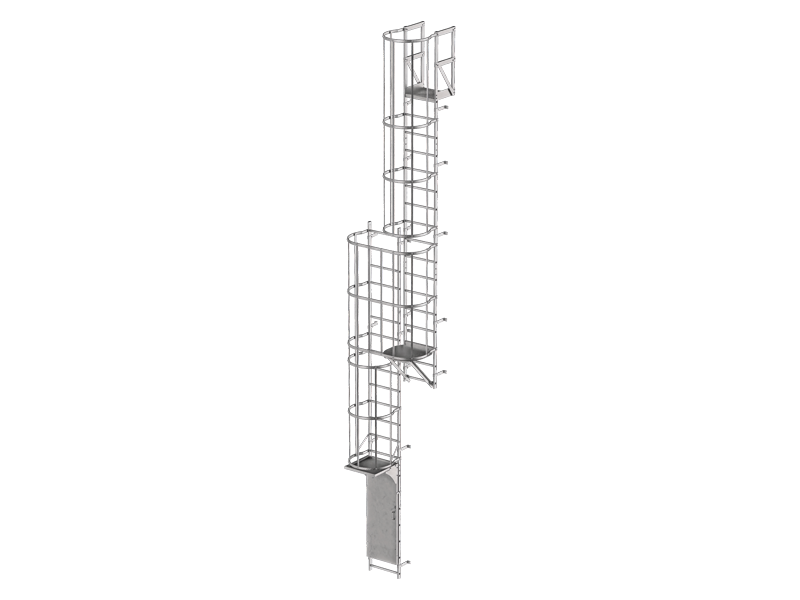

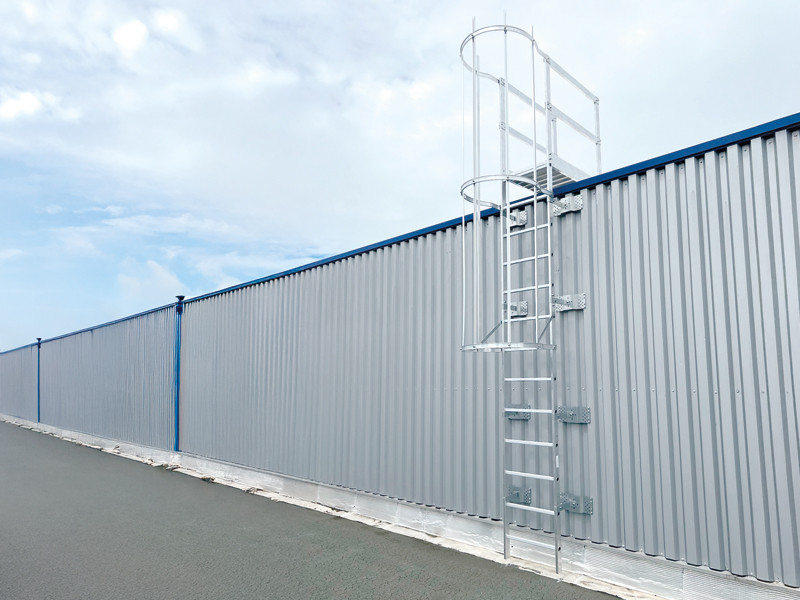

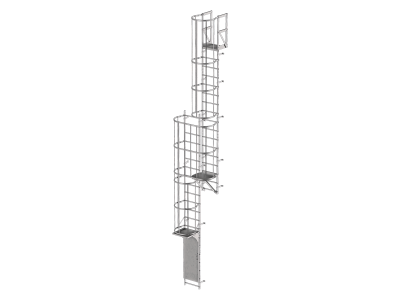

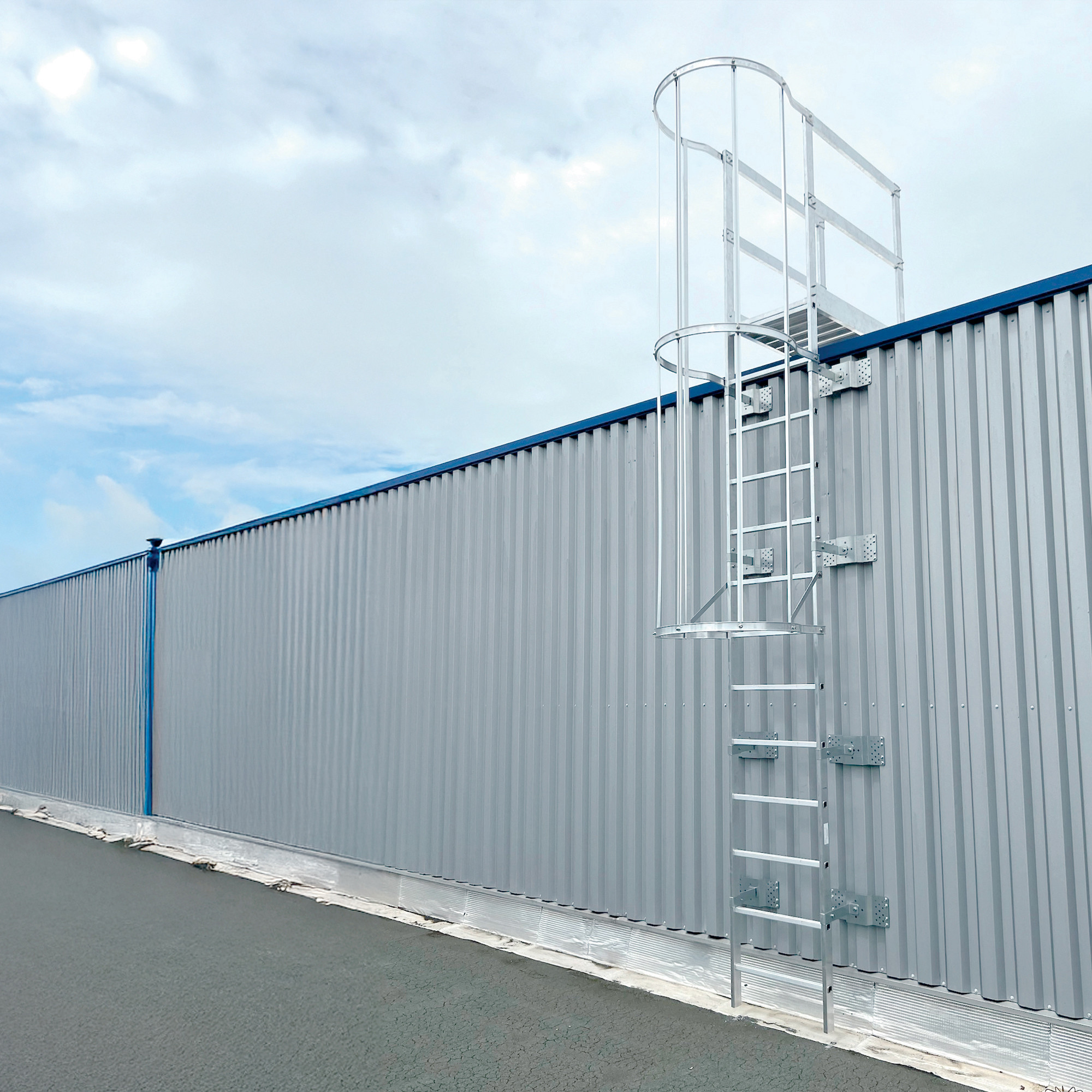

ESCALERAS CON JAULA
Realizadas en aleación de aluminio ofrecen una elevada resistencia mecánica a la corrosión y a los agentes atmosféricos.
Garantizan al usuario la máxima seguridad y al instalador la tranquilidad de un producto fiable y fácil de montar.
Gracias a la amplia gama de componentes, el sistema modular responde a cualquier exigencia de diseño.
Documentación
-
Ficha técnica
MODULI SCALA
| CÓDIGO | descripción | B
[mm]
|
L
[mm]
|
H
[mm]
|
unid. | |
|---|---|---|---|---|---|---|
| STEPMOD120 |
New
|
ladder module 1,20 m - 4 steps | 65 | 636 | 1200 | 1 |
| STEPMOD150 |
New
|
ladder module 1,50 m - 5 steps | 65 | 636 | 1500 | 1 |
| STEPMOD180 |
New
|
ladder module 1,80 m - 6 steps | 65 | 636 | 1800 | 1 |
| STEPMOD210 |
New
|
ladder module 2,10 m - 7 steps | 65 | 636 | 2100 | 1 |
| STEPMOD240 |
New
|
ladder module 2,40 m - 8 steps | 65 | 636 | 2400 | 1 |
| STEPMODCAP |
New
|
pair of upper upright caps | - | - | - | 1 |
| STEPMODJUN |
New
|
pair of ladder-to-ladder joints | 21 | 62 | 240 | 1 |
USCITE FRONTALI
| CÓDIGO | descripción | B
[mm]
|
L
[mm]
|
H
[mm]
|
unid. | |
|---|---|---|---|---|---|---|
| STEPOUT160 |
New
|
module with front exit rail 1,6 m - 2 steps | 65 | 636 | 1595 | 1 |
| STEPOUT190 |
New
|
module with front exit rail 1,9 m - 3 steps | 65 | 636 | 1895 | 1 |
| STEPOUT220 |
New
|
module with front exit rail 2,2 m - 4 steps | 65 | 636 | 2195 | 1 |
| STEPOUT250 |
New
|
module with front exit rail 2,5 m - 5 steps | 65 | 636 | 2495 | 1 |
| STEPOUTJUN |
New
|
pair of ladder joints-front exit rail | 21 | 62 | 240 | 1 |
GABBIA
| CÓDIGO | descripción | B
[mm]
|
L
[mm]
|
H
[mm]
|
unid. | |
|---|---|---|---|---|---|---|
| STEPBAR180 |
New
|
kit of 5 cage bars 1,8 m | 26.5 | 15 | 1800 | 1 |
| STEPBAR220 |
New
|
kit of 5 cage bars 2,2 m | 26.5 | 15 | 2200 | 1 |
| STEPBAR250 |
New
|
kit of 5 cage bars 2,5 m | 26.5 | 15 | 2500 | 1 |
| STEPBARJUN |
New
|
kit with 5 rod joints for cage | 18 | 22 | 80 | 1 |
ANELLI
| CÓDIGO | descripción | B
[mm]
|
L
[mm]
|
H
[mm]
|
unid. | |
|---|---|---|---|---|---|---|
| STEPRINGIT |
New
|
cage ring Leg. Decree 81/2008 - UNI 11962:2024 | 660 | 636 | 44 | 1 |
| STEPRINGEU |
New
|
cage ring EN 14122 | 760 | 636 | 44 | 1 |
| STEPRINGJUN |
New
|
pair of ladder-to-ring joints for cage | 36 | 61 | 36 | 1 |
| STEPSUPRING |
New
|
pair of reinforcements between steps and safety cage | 340 | 51 | 340 | 1 |
STAFFE
| CÓDIGO | descripción | B
[mm]
|
L
[mm]
|
H
[mm]
|
unid. | |
|---|---|---|---|---|---|---|
| STEPBRAF150 |
New
|
pair of mounting brackets for a 150 mm wall distance | 269 | 88 | 50 | 1 |
| STEPBRAV400 |
New
|
pair of mounting brackets for an adjustable wall distance - max. 400 mm | 474 | 88 | 55 | 1 |
| STEPBRAV600 |
New
|
pair of mounting brackets for an adjustable wall distance - max. 600 mm | 674 | 88 | 55 | 1 |
| STEPBRAMET |
New
|
pair of mounting plates for trapezoidal metal (fasteners included) | 150 | 358 | 32 | 1 |
TAPPI
| CÓDIGO | descripción | unid. | |
|---|---|---|---|
| STEPMODCAP |
New
|
pair of upper upright caps | 1 |
| STEPBARCAP |
New
|
kit with 5 rod caps | 1 |
PEDANA PER SDOPPIAMENTO
| CÓDIGO | descripción | unid. | |
|---|---|---|---|
| STEPBOARIT |
New
|
splitting platform Legislative Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPBOAREU |
New
|
splitting platform EN 14122 | 1 |
| STEPDOURIT |
New
|
splitting rod Leg. Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPDOUREU |
New
|
splitting rod EN 14122 | 1 |
TARGHETTA
| CÓDIGO | descripción | unid. | |
|---|---|---|---|
| STEPTARGAEU |
New
|
label EN 14122-4 + EN manual | 1 |
| STEPTARGAIT |
New
|
label Leg. Decree 81/2008 - UNI 11962:2024 + IT manual | 1 |
ACCESSO SCALA
| CÓDIGO | descripción | unid. | |
|---|---|---|---|
| STEPTRAPEU |
New
|
safety gate for ladder access EN 14122 | 1 |
| STEPTRAPIT |
New
|
safety gate for ladder access Legislative Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPDOOR90 |
New
|
half-height safety door complete with fasteners and door stop | 1 |
| STEPDOOR180 |
New
|
safety door | 1 |
| STEPDOORUP |
New
|
upper part of safety door | 1 |
CHIUSURA
| CÓDIGO | descripción | unid. | |
|---|---|---|---|
| STEPCOVEREU |
New
|
metal sheet to cover the safety cage EN 14122 | 1 |
| STEPCOVERIT |
New
|
metal sheet to cover the safety cage Legislative Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPCOVERSIDE |
New
|
pair of side cage covers | 1 |
KIT PROTEZIONE
| CÓDIGO | descripción | unid. | |
|---|---|---|---|
| STEPLAND300 |
New
|
300 mm platform kit with side protection | 1 |
| STEPLAND500 |
New
|
500 mm platform kit with side protection | 1 |
| STEPLAND800 |
New
|
800 mm platform kit with side protection | 1 |
| STEPLAND1000 |
New
|
1000 mm platform kit with side protection | 1 |
ACCESSORI E BASI
| CÓDIGO | descripción | unid. | |
|---|---|---|---|
| STEPDOORDIST |
New
|
- | 1 |
| STEPFEETREG |
New
|
pair of adjustable support feet with holes for possible ground fastening | 1 |
| STEPFEETHING |
New
|
pair of hinged feet with adjustable supports | 1 |
CANCELLETTI
| CÓDIGO | descripción | unid. | |
|---|---|---|---|
| STEPGATE550 |
New
|
landing gate H=550 mm (fasteners included) | 1 |
| STEPGATEKIT |
New
|
fastening kit for duplication of STEPGATE550 gate | 1 |
